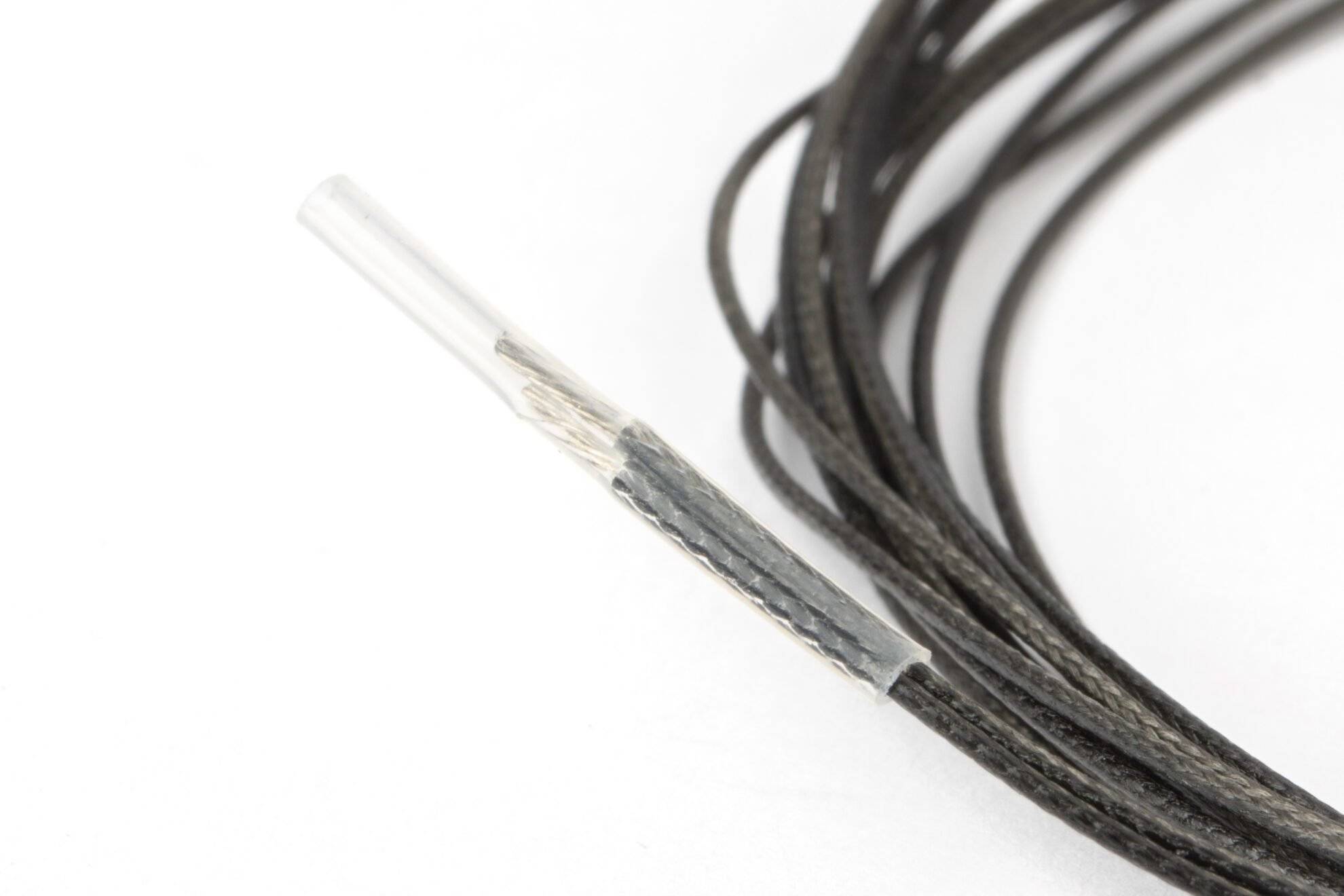

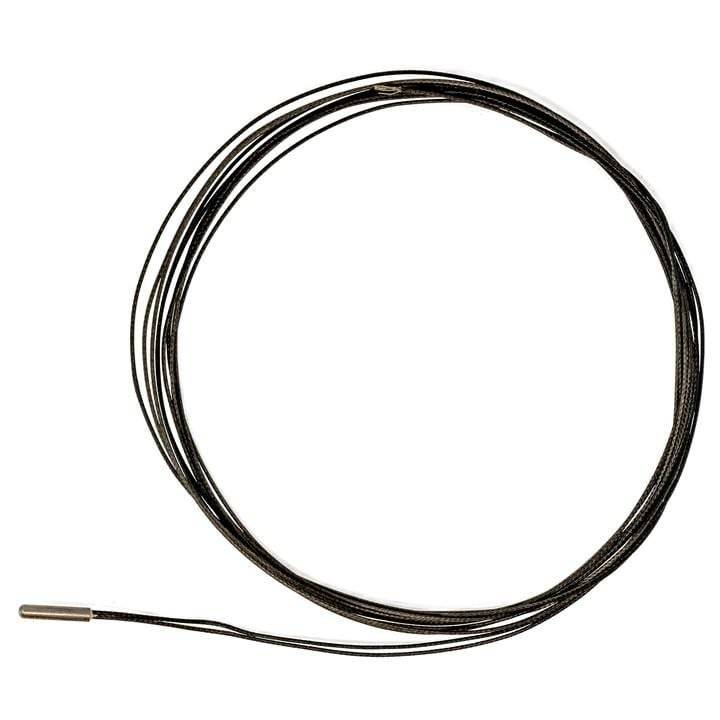

Slice Engineering PT1000 RTD 500°C Temperature Sensor

36,17 €

inkl. MwSt.

zzgl.

Stück

Lieferzeit: 8-11 Tage

im Zulauf

Verkauf & Versand:

venforce

(197)

36,17 €

inkl. MwSt.

zzgl.

Ein Artikel genügt Ihnen nicht und Sie möchten Geld sparen?

ab 2 Stück:	35,72 €	1,2% Ersparnis
ab 3 Stück:	35,10 €	3,0% Ersparnis

Produktbeschreibung

Überblick

Accurate from freeze-your-butt-off cold (-50 °C) to instantly-boil-your-innards hot (500 °C) Totally linear temperature response improves sensing accuracy across the range Virtually eliminates lead measurement error inherent in Pt100 sensors Highly accurate, IEC 60751 Class B tolerance (+/- 0.3 +0.005 |t| °C) 15 mm long. 3 mm diameter sensor cartridge 2 m long bare leads allow for easy adaptation to any 3D printer build 300 series stainless steel cartridge to boost durability Robust, thin-film construction sensor Made in USA

Beschreibung

Platinum based resistor PT1000 Resistance Temperature Detector (RTD) uses a platinum resistor. Platinum has high and stable resistance for a metal, and a low temperature coefficient. Platinum based resistors make it easy to measure even the smallest changes in temperature with precision. Platinum also carries as advantages it does not react with most contaminant gases in the air and has very regular properties every batch. For these reasons it has become the standard for temperature sensing precision.
