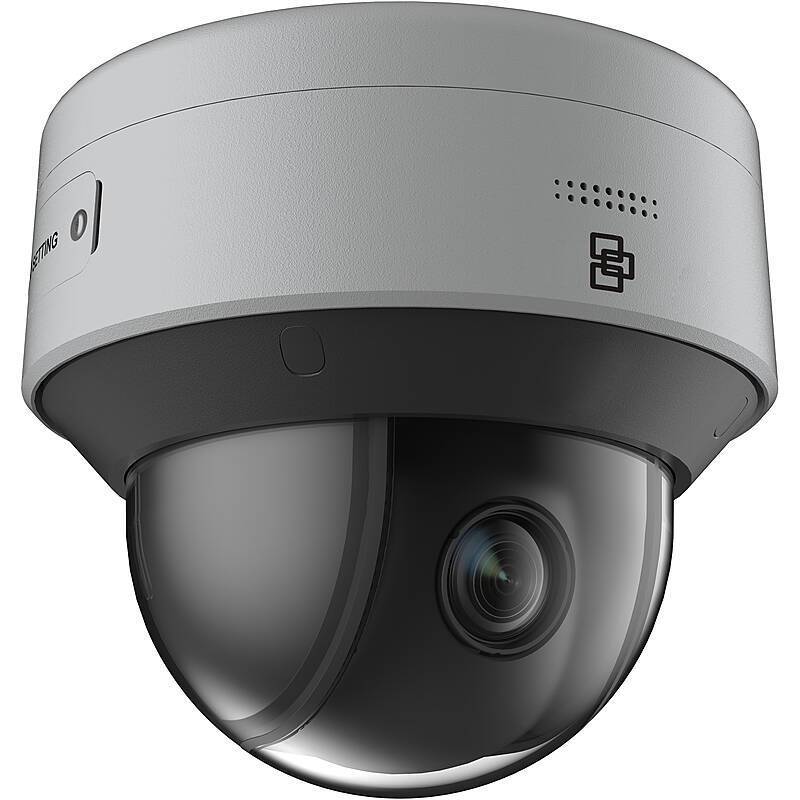

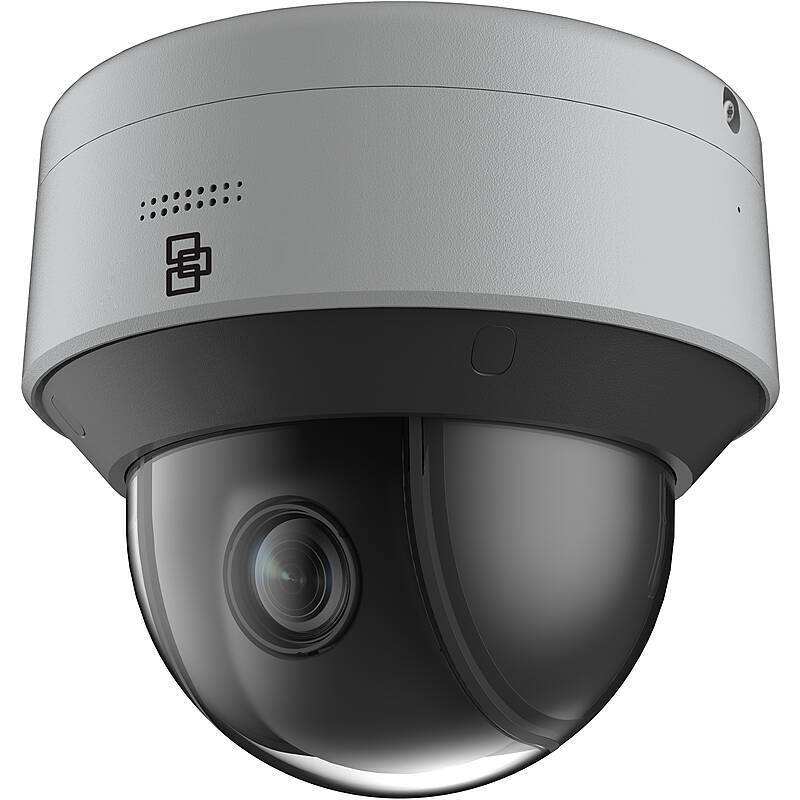

TruVision TVGP-M01-0201-PTZ-G IP-Kamera 1080p T/N, 1080pPTZ Kamera | Blickwinkel:108° - 19,8° (Objektiv-Brennweite 2,8

Überblick

TruVision TVGP-M01-0201-PTZ-G IP-Kamera 1080p T/N, 1080pPTZ Kamera | Blickwinkel:108° - 19,8° (Objektiv-Brennweite 2,8 - 28 mm) | Nachtsicht:per Infrarot (Reichweite bis zu 50 m) | Audiounterstützung:Ja | SD-Karten-Slot:Ja | Zoom:10x optisch, 16x digital | WDR:Ja, 120dB | Schutzart:IP66 | IR-Sperrfilter:Ja | Videokomprimierung:H.265+, H.265, H.264+, H.264, MJPEG | Anschlussart:IP (Ethernet Kabel) | Einsatzgebiet:Außenbereich, mit Tag-& Nachtsicht

Beschreibung

1080pPTZ Kamera | Blickwinkel:108° - 19,8° (Objektiv-Brennweite 2,8 - 28 mm) | Nachtsicht:per Infrarot (Reichweite bis zu 50 m) | Audiounterstützung:Ja | SD-Karten-Slot:Ja | Zoom:10x optisch, 16x digital | WDR:Ja, 120dB | Schutzart:IP66 | IR-Sperrfilter:Ja | Videokomprimierung:H.265+, H.265, H.264+, H.264, MJPEG | Anschlussart:IP (Ethernet Kabel) | Einsatzgebiet:Außenbereich, mit Tag-& Nachtsicht

BESCHREIBUNG

• 2MP Auflösung
• 10-facher optischer Zoom, 16-facher Digitalzoom
• IR-Beleuchtung bis zu 50 m
• Videointelligenz mit Personen-/Fahrzeugzielklassifizierung
• Eingebautes Mikrofon und Lautsprecher, Audioalarme werden unterstützt
• Blinkende weiße Alarm-LED
• H.265+-Komprimierung
• Nur direkte Deckenmontaget

EIGENSCHAFTEN

TECHNISCHE DATEN

• Technology: IP
• Video standard: NTSC,? PAL
• OSD: Text Overlay
• Privacy masking: 24 programmable polygon privacy
• masks,? mask
• color or mosaic configurable
• Software compatibility: TruVision Navigator,?
• TVRmobile,? Web
• Browser
• Plugin-free web browser support: Google Chrome,?
• Mozilla Firefox
• Sensor size: 1/1.8"
• Max. resolution: 2 MP
• Sensor scan: Progressive
• Sensor type: CMOS
• Digital S/N ratio: =55 dB
• Shutter time: 1/1 to 1/30,?000 s
• WDR type: True WDR
• WDR: 120 dB
• Day/night: True Day/Night
• Motorized IR cut filter: Yes
• Color sensitivity: Color: 0.005 Lux @ (F1.3,?
• AGC ON),? B/W
• 0.001 Lux @ (F1.3,? AGC ON),? 0 Lux with IR
• Infrared (IR): Yes
• IR range: 50 m
• IR wavelength: 850 nm
• Video streams: 3
• Main stream compression: H.264,? H.264+,?
• H.265,? H.265+
• Sub stream compression: H.264,? H.265,? MJPEG
• Third stream compression: H.264,? H.265,? MJPEG
• Video bit rate: 32 to 16 Mbps
• Main stream resolutions: 1280 x 720 (XVGA),?
• 1280 x 960 (720p),?
• 1920 x 1080 (1080p)
• Sub stream resolutions: 352 x 288 (CIF),? 640 x
• 480 (VGA),? 704 x
• 576 (4CIF)
• Third stream resolutions: 1280 x 720 (XVGA),?
• 1280 x 960 (720p),?
• 1920 x 1080 (1080p),? 352 x 288 (CIF),? 640 x 480 (VGA),? 704 x 576
• (4CIF)
• Max. resolution @ fps: 1920 × 1080 @ 25 fps
• Focal length: 2.8 to 28 mm - Horizontal FoV 108
• to 19.8°,?
• vertical FoV 56.4 to 11.5°
• f-stop: Max. F1.3
• Auto iris: Yes
• Auto focus: Yes
• Motorized zoom: Yes
• Pan: Pan speed: configurable from 0.1 to 60°/s.
• preset speed
• 60°/s
• Tilt: Tilt speed: configurable from 0.1 to
• 50°/s,? preset speed
• 50°/s
• Endless pan: No,? pan range 355°
• Auto flip: No
• Optical zoom: 10x
• Digital zoom: 16x
• Preset positions: 300
• Preset tours: 8
• Network interface: RJ-45 10/100 Mbps
• self-adaptive Ethernet
• interface
• Integration: CGI,? ISAPI,? ONVIF Profile G,?
• ONVIF Profile S,?
• ONVIF Profile T,? SDK
• Supported network protocols: 802.1x,? Bonjour,?
• DDNS,? DHCP,?
• DNS,? ezDDNS,? FTP,? HTTP,? HTTPS,? ICMP,? IGMP,? IPv4,? IPv6,? NTP,?
• PPPoE,? RTCP,? RTP,? RTSP,? SNMP,? TCP/IP,? UPnP
• Simultaneous live view: Up to 20 channels
• Audio compression: G.711,? G.722.1,? G.726,?
• MP2L2,? PCM
• Audio in: 1 built-in microphone
• Audio out: 1 built-in speaker,? pre-defined and
• custom audio
• alarms supported
• Audio bit rate: 64 Kbps (G.711)/16 Kbps
• (G.722.1)/16 Kbps
• (G.726)/32-192 Kbps (MP2L2)
• Alarm inputs: 1
• Alarm outputs: 1 relay output,? 12 VDC power
• output of max. 0.7
• W,? flashing white alarm LED,? audio alarms
• Alarm I/O connection: Individual wires
• Local storage type: Built-in memory card slot,?
• support
• microSD/SDHC/SDXC card
• Max. SD card capacity: 256 GB
• Alarm trigger: HDD error,? HDD full,? Invalid
• login,? IP address
• conflict,? Network disconnected
• ROI: 8 fixed regions for each stream
• Smart event: Audio exception detection,? Face
• capture,? Intrusion
• detection,? Line crossing detection,? Motion detection,? Object removal
• detection,? Region entrance detection,? Region exiting detection,?
• Unattended baggage detection
• Intelligence options: Face capture: can detect
• up to 30 faces
• simultaneously. Supports detecting,? capturing,? grading,? selecting of
• faces in motion,? and generates the best face picture..
• Person/vehicle filtering: these options can be
• configured on line
• crossing,? intrusion detection,? region entry/exit detection.
• Operating voltage
• 12 VDC,? PoE (802.3at)
• 12 VDC adapter included (without mains lead)
• Power consumption: Max. 24 W

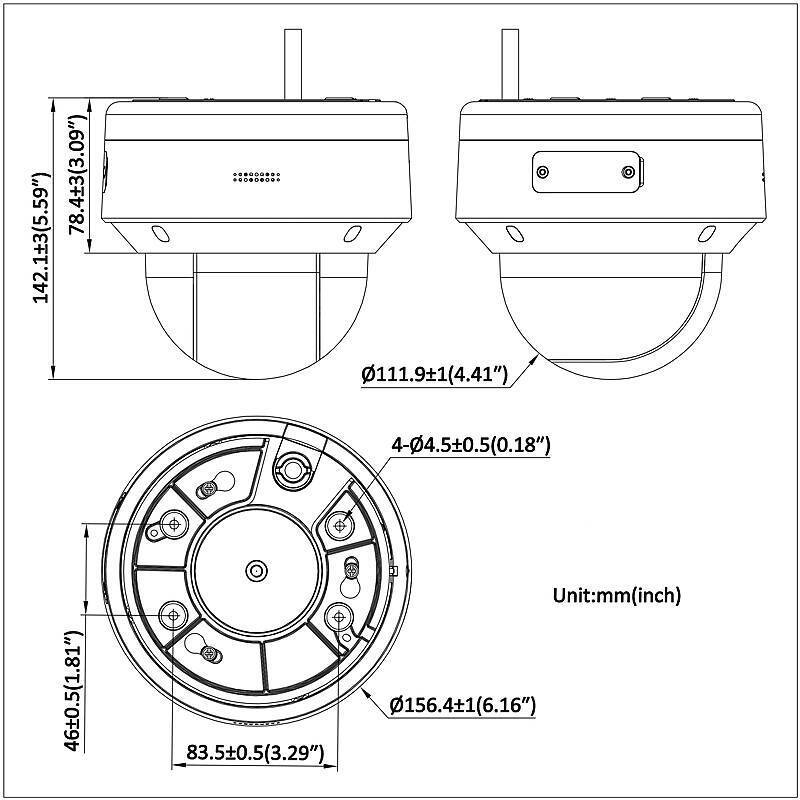

• Physical dimensions
• Ø 156.4 × 142.1 mm
• Ø 6.16 × 5.59 in.
• Net weight
• Approx. 1.90 kg
• Approx. 4.19 lb.
• Colour: Grey (Pantone 428c)
• Material: Metal
• Form Factor: PTZ
• Mount: Ceiling mount
• Operating temperature
• -30 to 65°C
• -22 to 149°F
• Relative humidity: 90% or less,? noncondensing
• IP rating: IP66

LIEFERUMFANG

Lieferumfang

1
