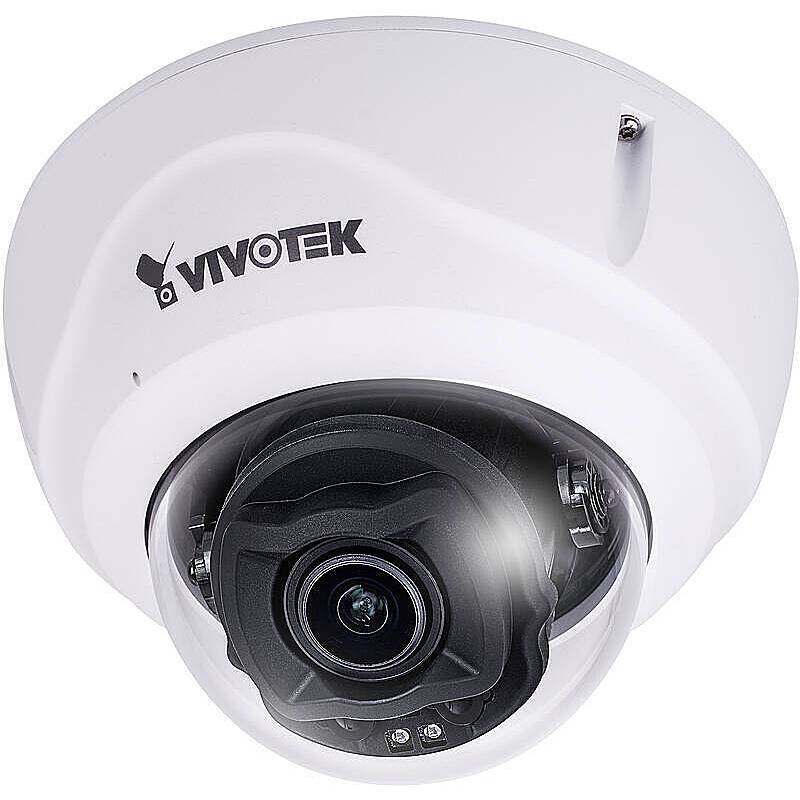

4x VIVOTEK FD9387-HTV-A IP-Kamera + Aufkleber, Set-Inhalt:2x Aufkleber, 4x Dome Kamera | 5 MegapixelDOME KAMERA SET | B

Überblick

4x VIVOTEK FD9387-HTV-A IP-Kamera + Aufkleber, Set-Inhalt:2x Aufkleber, 4x Dome Kamera | 5 MegapixelDOME KAMERA SET | Blickwinkel:100° - 30° (Objektiv-Brennweite 2,7 - 13,5 mm) | Features:Deep Learning (intelligente Analysen), WDR Pro (Wide Dynamic Range), SNV (Supreme Night Visibility), Trend Micro IoT Security, MicroSD/SDHC/SDXC Card Slot, H.265, H.264, MJPEG, Smart Stream III, 3DNR, Smart IR, Stratocast, NDAA (National Defense Authorization Act), SMD (Smart Motion Detection), Smart VCA,

Beschreibung

Set-Inhalt:2x Aufkleber, 4x Dome Kamera | 5 MegapixelDOME KAMERA SET | Blickwinkel:100° - 30° (Objektiv-Brennweite 2,7 - 13,5 mm) | Features:Deep Learning (intelligente Analysen), WDR Pro (Wide Dynamic Range), SNV (Supreme Night Visibility), Trend Micro IoT Security, MicroSD/SDHC/SDXC Card Slot, H.265, H.264, MJPEG, Smart Stream III, 3DNR, Smart IR, Stratocast, NDAA (National Defense Authorization Act), SMD (Smart Motion Detection), Smart VCA, AI-powered | Nachtsicht:per Infrarot (Reichweite bis zu 50 m) | Audiounterstützung:Ja | Vandalismusschutz:Ja | SD-Karten-Slot:Ja | Zoom:48x digital | Gegenlichtkompensation:Ja | WDR:Ja, 120dB | Schutzart:IP67 | IR-Sperrfilter:Ja | Videokomprimierung:H.265, H.264, MJPEG | Anschlussart:IP (Ethernet Kabel) | Einsatzgebiet:Außenbereich, mit Tag-& Nachtsicht | Modell / Serie:V-Serie

BESCHREIBUNG

• 30 fps bei 2560 x 1920, 60 fps bei 1920 x 1080
• H.265-Komprimierungstechnologie
• Smart Stream III zur Optimierung der Bandbreiteneffizienz
• SNV (Supreme Night Visibility) für schlechte Lichtverhältnisse
• WDR Pro für unvergleichliche Sichtbarkeit in extrem hellen und dunklen Umgebungen
• Eingebaute IR-Strahler, effektiv bis zu 50 Meter
• Intelligente IR II-Technologie zur Vermeidung von Überbelichtung
• Intelligente Bewegungserkennung zur Reduzierung von Fehlalarmen
• Smart VCA (Intrusion Detection, Loitering Detection, Line Crossing Detection)
• Trend Micro IoT-Sicherheit
• Wetterfestes IP66-, IP67- und vandalensicheres IK10-Gehäuse

EIGENSCHAFTEN

Produktart

• Typ: DOME KAMERA SET
• Technik: IP (Ethernet Kabel)
• Modell / Serie: V-Serie
• Einsatzbereich: Außenbereich
• Anzahl Kameras: 4
• Tag-/Nachtsicht: mit Tag-&. Nachtsicht
• Farbe: Weiß
• Welche Artikel im Set?: 2x Aufkleber 4x Dome Kamera
• Anwendung: Videoüberwachung

Ausstattung

• Besonderheiten: Deep Learning (intelligente Analysen) WDR Pro (Wide Dynamic Range) SNV (Supreme Night Visibility) MicroSD/SDHC/SDXC Card Slot Trend Micro IoT Security H.265, H.264, MJPEG 3DNR Smart Stream III Smart IR Stratocast NDAA (National Defense Authorization Act) Smart VCA SMD (Smart Motion Detection) AI-powered
• Videokomprimierung: H.265 H.264 MJPEG
• Integrierte Beleuchtung: Infrarot
• IR Reichweite: 50 m
• SD-Karten-Slot: Ja
• IR Sperrfilter: Ja
• Wide Dynamic Range (WDR): Ja 120dB
• Gegenlichtkompensation: Ja
• Anschlüsse: RJ-45 (LAN) 12 V DC RJ-45 PoE (LAN) 24 V AC Digitaler Eingang Digitaler Ausgang

Bildeigenschaften

• Bildauflösung: 5 Megapixel
• Blickwinkel (horizontal): 100° - 30°
• Objektiv-Brennweite: 2,7 - 13,5 mm
• Zoomfaktor: 48x digital

Sonstiges

• Audiounterstützung: Ja
• Zertifizierung: IK10
• Gewicht: 909 g
• Montageart: Wandmontage Decke
• Höhe: 103,2 mm
• Breite: 155 mm

Stromversorgung

• Strom-/Leistungsaufnahme: max. 12 W
• Spannungsversorgung: PoE 12 V DC 24 V AC

Umgebung

• Schutzart IP: IP67
• Vandalismussgeschützt: Ja

TECHNISCHE DATEN

• System Information
• Model: FD9387-HTV-A
• CPU: Multimedia SoC (System-on-Chip)
• Flash: 256 MB
• RAM: 1 GB
• Camera Features
• Image Sensor: 1/2.7" Progressiv e CMOS
• Max. Resolution: 2560x1920 (5MP)
• Lens Type: Motorized, Vari-f ocal, Remote Focus
• Focal Length: f = 2.7 ~ 13.5 mm
• Aperture: F1.4 ~ F2.8
• Iris Type: P-iris
• Field of View
• 100° ~ 30° (Horizontal)
• 72° ~ 23° (Vertical)
• 135° ~ 38° (Diagonal)
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Day /Night: Yes
• Remov able IR-cut Filter: Yes
• IR Illuminators: Built-in IR illuminators, ef f
• ectiv e up to 50 meters with Smart IR II, IR LED*4
• Minimum Illumination
• 0.075 lux @ F1.4 (Color)
• <.0.01 lux @ F1.4 (B/W)
• 0 lux with IR illumination on
• Pan Range: 350°
• Tilt Range: 80°
• Rotation Range: ±175°
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital
• zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless Recording to MicroSD/SDHC/SDXC
• card slot and recording to network-attached storage (NAS)
• Built-in Installation Aids: Remote f ocus,
• remote zoom, CVBS
• Video
• Video Compression: H.265, H.264, MJPEG
• Maximum Frame Rate
• 30 f ps @ 2560x1920 (WDR Pro on)
• 30 f ps @ 2560x1440 (WDR Pro on)
• 60 f ps @ 1920x1080 (WDR Pro off)
• Maximum Streams: 3 simultaneous streams
• S/N Ratio: 57 dB
• Dynamic Range: 120 dB
• Video Streaming: Adjustable resolution, quality
• and bit rate control, Smart Stream III
• Image Settings
• General settings: video title and time stamp
• overlay, video orientation (flip, mirror,
• rotation), day /night settings
• Illuminators: illuminators, anti-ov erexposure
• Image settings: white balance, image
• adjustment (brightness, contrast, saturation, sharpness, gamma curve),
• defog, 3DNR
• Exposure: BLC, HLC, exposure control (exposure
• level, iris adjustment, exposure time, gain control, iris mode), AE
• speed adjustment, WDR
• Focus: zoom, focus
• Privacy mask. Scheduled profile settings
• Audio
• Audio Capability: Two-way Audio (f ull duplex)
• Audio Compression: G.711, G.726
• Audio Interface
• Built-in microphone
• External microphone input
• External line output
• Effective Range: 5 meters
• Network
• Users: Live viewing for up to 10 clients
• Security: Access list, digest authentication,
• HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security
• (brute f orce attack ev ent, cy berattack ev ent, quarantine ev ent),
• user access log, user account management
• Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS,
• DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv 4, IPv 6, NTCIP, NTP,
• PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2,
• UDP, UPnP
• Interface
• 10 Base-T/100 Base-TX Ethernet (RJ-45)
• *It is highly recommended to use standard CAT5e &. CAT6
• cables which are compliant with the 3P/ETL standard.
• ONVIF: Prof ile G, S supported, specif ication
• av ailable at www.onv if .org
• Solution Integration
• Smart Motion Detection: Fiv e-window v ideo
• motion detection, people detection, time f ilter
• Smart VCA Intrusion detection, loitering
• detection, line crossing detection, unattended object detection,
• missing object detection, f ace detection, crowd detection, running
• detection
• *Please access https: //license.v iv otek.com/ to get the free trial
• license.
• VADP Package: Deep Learning VCA (Smart Motion
• Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-y ear f
• ree trial)
• Alarm and Event
• Event Trigger: Audio detection, camera tampering
• detection, cybersecurity events (brute f orce attack event, cyberattack
• event, quarantine event), digital input, manual trigger, motion
• detection, periodical trigger, recording notif ication, SD card lif e
• expectancy, shock detection, sy stem boot
• Event Action: Event notif ication v ia audio
• clip, digital output, email, HTTP, FTP, NAS serv er, SD card, File
• upload via email, HTTP, FTP, NAS serv er, SD card
• General
• Connectors
• RJ-45 cable connector f or 10/100Mbps Network/PoE connection
• Audio line input
• Audio line output
• AC 24V power input (Optional)
• DC 12V power input
• Digital input *2
• Digital output *2
• TV output
• LED Indicator: System power and status ind
