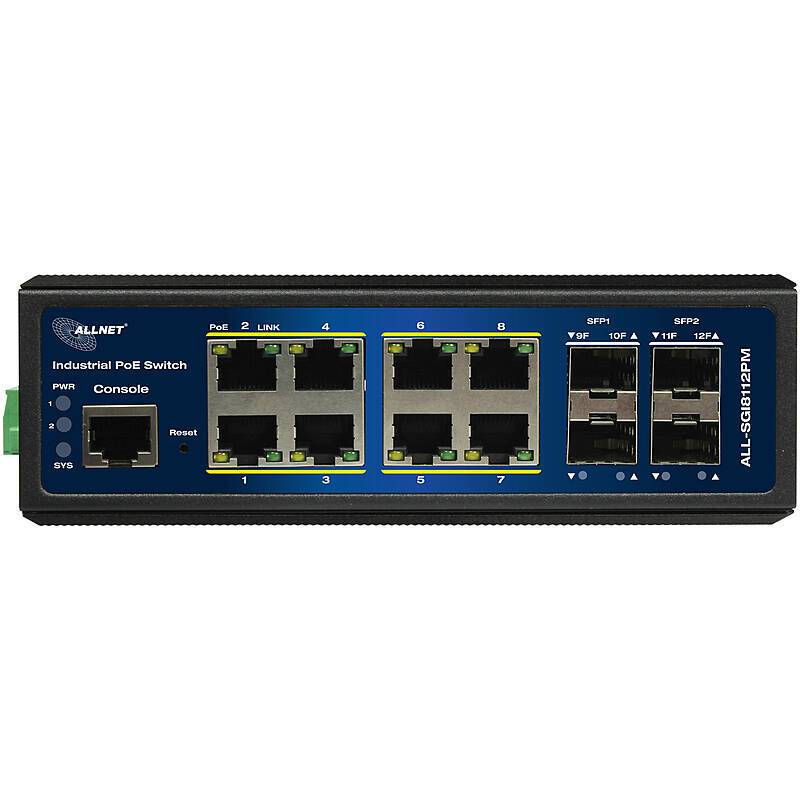

ALLNET ALL-SGI8112PMJ Switch managed 12Port PoE+, Typ: Switch | Anwendung: Videoüberwachung, IT | Farbe: Schwarz

Überblick

ALLNET ALL-SGI8112PMJ Switch managed 12Port PoE+, Typ: Switch | Anwendung: Videoüberwachung, IT | Farbe: Schwarz

Beschreibung

Typ: Switch | Anwendung: Videoüberwachung, IT | Farbe: Schwarz

BESCHREIBUNG

• 8-Gigabit Ports mit PoE AF-AT Unterstützung bis zu 30Watt pro Port
• 4x SFP Ports für LWL-Gbics z.b. ALL4750-INDU / ALL4751-INDU etc.
• PoE Ports 1-8 max. PoE IEEE802.3at 30W
• Layer2+ Features wie 802.1Q VLAN, Port Isolation IGMP, LLDP, PoE+ Management, IP source Guard, ACLs etc.
• Unterstützt Spaning Tree STP (802.1D) und RSTP (802.1W) und MSTP (802.1s)
• Unterstützt PoE management wie PoE Scheduling, PoE PD-alive, Port PoE Priority, Soft-Reboot PoE Non-Stop
• Unterstützt G.8032 quick ring protocol. Selbst-Heilung <.20ms
• Max. PoE Budget = 240 Watt
• Lüfterloses Metallgehäuse mit optimierter Wärmeableitung
• Einfache Nutzung als Tischgerät, Wandmontage oder Hutschiene
• Erweiterter Temperaturbereich von -40°C ~ +75°C
• Hutschienenklammer im Lieferumfang

EIGENSCHAFTEN

Produktart

• Typ: Switch
• Farbe: Schwarz
• Anwendung: Videoüberwachung IT

Ausstattung

• Anschlüsse: RJ-45 (LAN) RJ-45 PoE (LAN) SFP

Stromversorgung

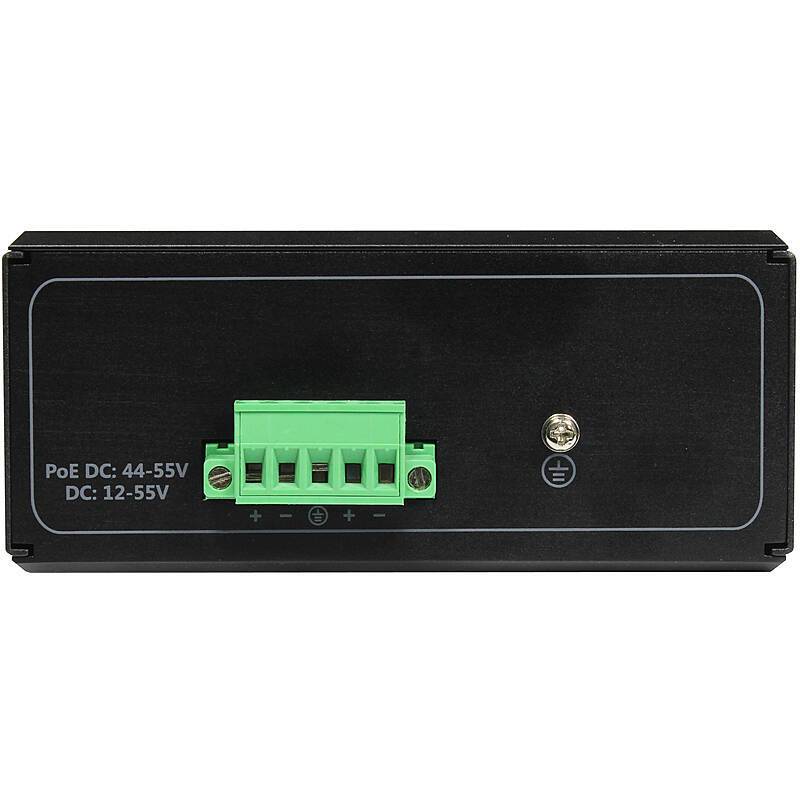

• Spannungsversorgung: 12 - 56 V DC

TECHNISCHE DATEN

• Model: ALL-SGI8112PMJ
• Copper Ports: 8-10/100/1000BASE-T RJ45
• auto-sensing ports
• Fiber Ports: 4-100/1000BASE-T SFP interfaces,
• supports 100/1000Mbps dual mode
• PoE Ports: 8-802.3af/802.3at PoE Injector Ports
• Console Ports: 1 x RS-232-to-RJ45 serial port
• (115200, 8, N, 1)
• Switch Architecture: Store-and-Forward
• Switch Fabric: 24Gbps/non-blocking
• Throughput: 17.856Mpps @64 bytes
• Address Table: 8K entries
• Share Data Buffer: 4.1 Mb
• Jumbo Frame: 9216 Bytes
• SDRAM: 1Gb
• Flash Memory: 128Mb
• Flow Control: IEEE 802.3x pause frame for
• full-duplex . Back pressure for
• half-duplex
• Reset Button: >.2 sec.: Factory default and
• reset
• Power Supply: 48 ~ 57 VDC, 50/60Hz,Dual DC
• Power Consumption: without PoE =12W
• PoE Standards
• IEEE 802.3af Power over Ethernet/PSE
• IEEE 802.3at Power over Ethernet Plus/PSE
• PoE Power Supply Type
• Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
• Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at)
• LED Indicators
• Power: Green
• Solid on--power work normal,off--power disconnected
• System: Green
• Blink--work normally, solid on--soft work abnormal, fast
• blink--soft upgrade
• PoE: Yellow
• Solid on--PoE work normally, Off--PoE doesn’t work,
• Blink--PoE
• overload
• 10/100/1000T RJ45 Interfaces (Port 1 to Port 8): 1000 LNK/ACT
• (Green), Blink--port connected with data transmission. Solid on--port
• connected without data transmission
• 100/1000Mbps SFP Interfaces (Port 9 to Port 12): Green
• Blink- port connected with data transmission. Solid on- port
• connected without data transmission
• EMC
• 6KV surge protection (6KV Common Mode, 2KV differential Mode),
• 6KV contact/8KV air ESD
• Surge Immunity: 6KV Per: IEC61000-4-5
• ESD Protection: ESD Level 4 Per: IEC61000-4-2.EFT Level 4 Per:
• IEC61000-4-4
• Dimension: 165x123x53.5mm
• Weight: 1.0kg
• Working Temperature: -40°C to 75°C
• Storage Temperature: -40°C to +80°C
• MTBF: 50,000hrs
• Port configuration
• Auto-negotiation Flow Control
• Port Mirror: TX/RX/BOTH. Many-to-1 monitor CPU Mirror
• Traffic statistics
• Link Aggregation
• Static link aggregation LACP(Dynamic Trunk/Static Trunk)
• Algorith based on Source/Destination MAC Algorithm based on
• Source/Destination IP
• MAC Table
• Aging Time
• Static MAC address
• Dynamic MAC address management
• VLAN
• 4094 Active VLANs
• 4094 VID
• 802.1Q Tag VLAN
• Port VLAN Protocol VLAN MAC VLAN
• Voice VLAN
• 802.1ad Q-in-Q tunneling Private VLAN (Protected port) GARP/GVRP
• ACL
• 256ACLs L2, L3 e L4
• Time-based ACL IP ACL
• MAC ACL MAC-IP ACL
• User-Defined ACL
• ICMPv6
• Spanning tree
• 802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree
• Protocol (RSTP)
• 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard
• Root Guard
• TC-BPDU Guard
• BPDU Guard BPDU Filter
• Ring Protection
• <.20ms G.8032 ERPS Ring
• Fast Ring
• Multicast
• 256 groups
• IGMP v1/v2/v3 Snooping, Fast Leave MLD Snooping
• Multicast VLAN IGMP filter MVR
• Multicast Routing
• QOS
• 8 mapping IDs to 8 level priority queues CoS port-based
• CoS 802.1p-based
• CoS DSCP-based

LIEFERUMFANG

Lieferumfang

1
