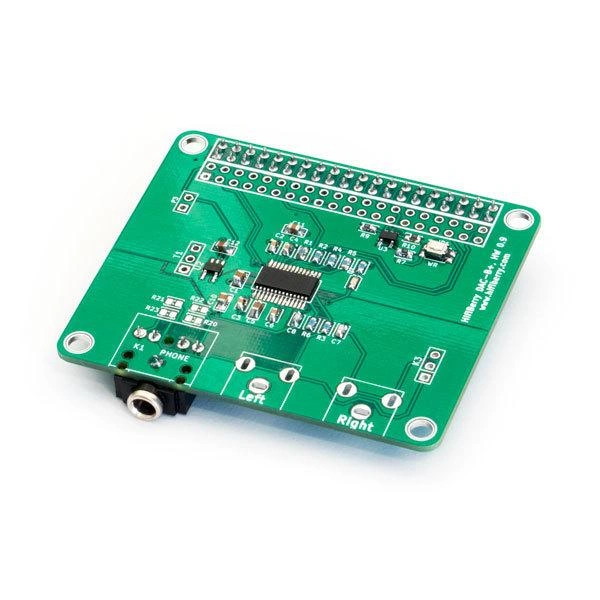

The HiFiBerry DAC+ is a high-resolution digital-to-analog converter for the Raspberry Pi Model B+. This is a special sound card for the Raspberry Pi, that is optimized for one specific use case: the best audio playback quality.
- Dedicated 192kHz/24bit high-quality Burr-Brown DAC for best sound quality
- Hardware volume control. You can control the output volume using alsamixer or any application that supports ALSA mixer controls.
- Connects directly to the Raspberry Pi, no additional cables needed
- No soldering Comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi B+, conform to the Raspberry Pi hardware-attached-on-top (HAT) specification.
- Compatible with Raspberry Pi model B+
- Directly powered from the Raspberry Pi, no additional power supply
- Ultra-low-noise voltage regulator for optimal audio performance
- Available with different output connectors: RCA or 3.5mm phone jack
- Integrated EEPROM for automatic configuration (with write-protection).
Note that this feature is still in development by the Raspberry Pi foundation. You will be able to upgrade your HiFiBerry DAC+ when it is officially available. The sound card already works without this feature. - Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi.
This is still a line-output and not designed to drive headphones. For the use with headphones you need an additional headphone amplifier.Notice about the compatibility with Raspberry Pi Model A and B: This board is only compatible with the new Raspberry Pi Model B+. If you have an older Raspberry Pi.
