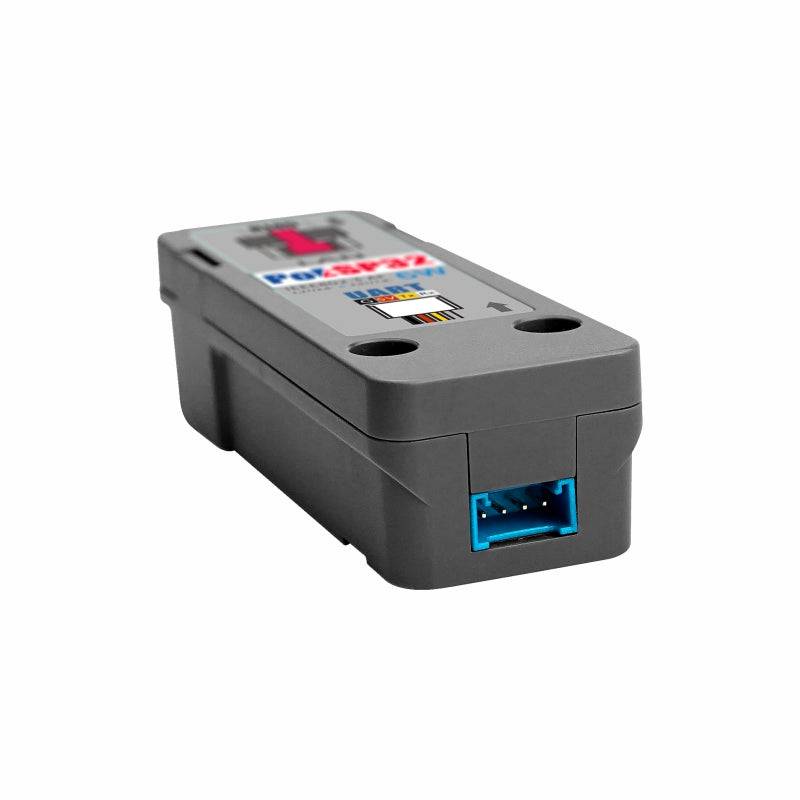

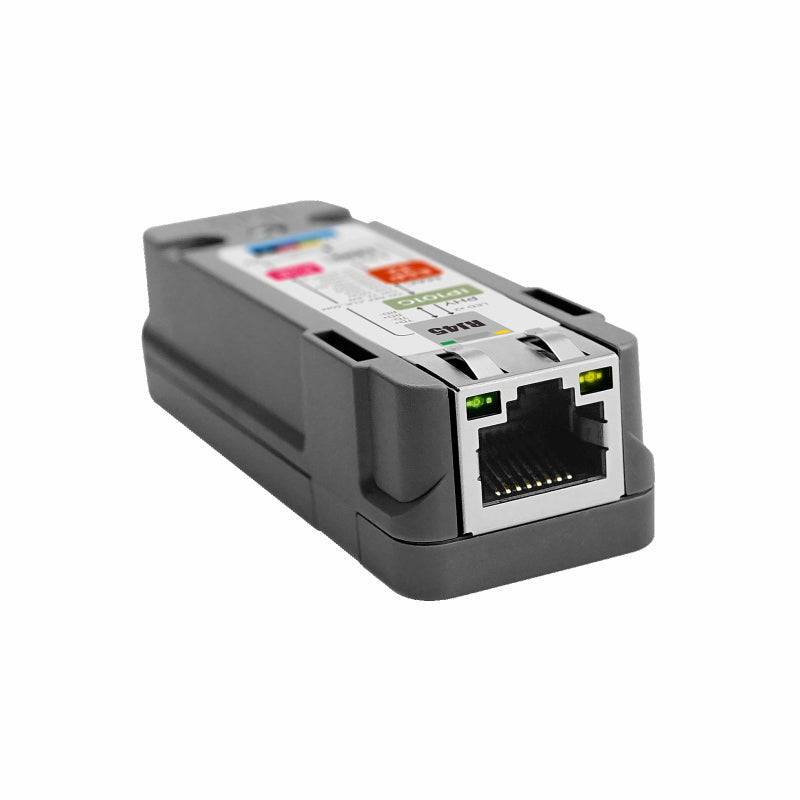

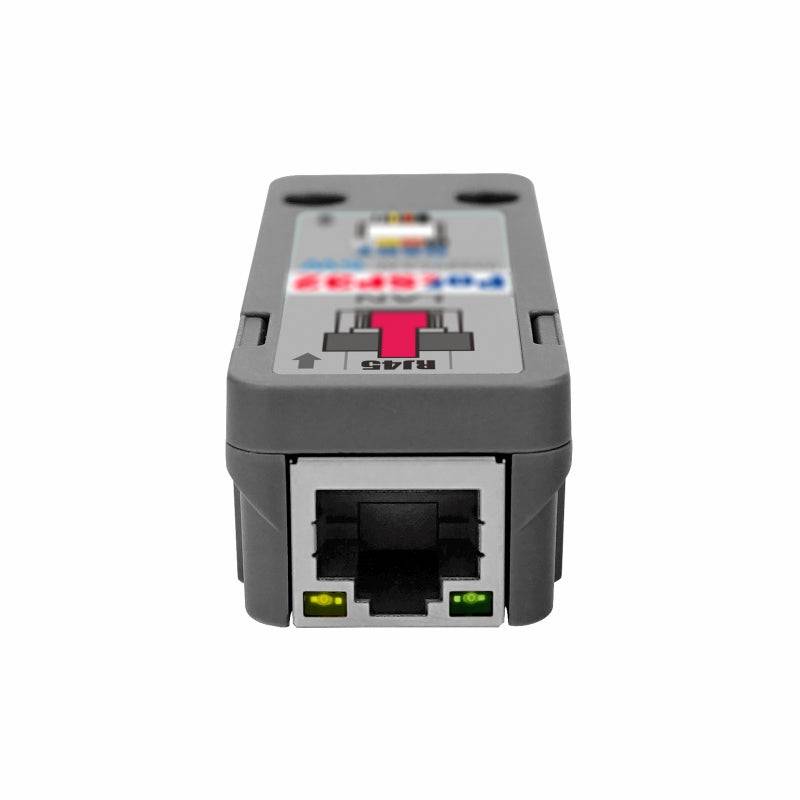

M5Stack ESP32 Ethernet Unit with PoE Supports TCP MQTT HTTP Protocols
M5Stack ESP32 Ethernet Unit with PoE Supports TCP MQTT HTTP Protocols
PoESP32 Unit is an ESP32 Ethernet Unit supports PoE (Power Over Ethernet). This module adopts ESP32 as built-in MAC, and IP101G as physical layer transceiver. Default firmware with ESP-AT, supports TCP,MQTT, HTTP protocols. It can connect to server with simple AT commands through serial port, achieving data transmission and remote control functions.
- Embedded ESP32 main controller
- PHY solution: Transceiver model IP101G, IEEE 802.3/802.3u standard
- Ethernet Interface. PoE standard: PoE IEEE802.3 AF / Support maximum load power 6W. RJ45 network port 10/100Mbps
- Communication / download interface: Default firmware is ESP-AT / Support secondary development to implement TCP Client/HTTP/CoAP and other protocols. Programmable / support secondary development, reserve program download interface
- Power supply: HY2.0-4P interface 5V DC power supply, PoE power supply (PoE IEEE802.3 AF)
- Development Platform: UIFlow(coming soon), Arduino, ESP-IDF
Included
- 1x UNIT PoESP32
- 1x HY2.0-4P Cable (20cm)
- 1x Instruction manual
Specification
- ESP32-WROOM-32U/D: 240MHz dual core, 600 DMIPS, 520KB SRAM (without integrated 3D antenna, does not support WiFi&BLE wireless function)
- Flash: 4MB
- PHY: IP101G: IEEE 802.3/802.3u
- MAC-PHY Interface Type: RMII
- PoE Specifications: PoE IEEE802.3 AF Specifications / Maximum Power 6W
- Ethernet Interface Specifications: RJ45 10/100Mbps
- Reserved interface: 1x HY2.0-4P interface, 1x program download interface
- Communication interface: UART 9600bps 8N1 AT command control
- Communication logic level: 3.3V
- Net Weight: 26.2g
- Gross Weight: 32.8g
- Product size: 72 * 26 * 19.2mm
- Packing Size: 75 * 36 * 20.5mm
