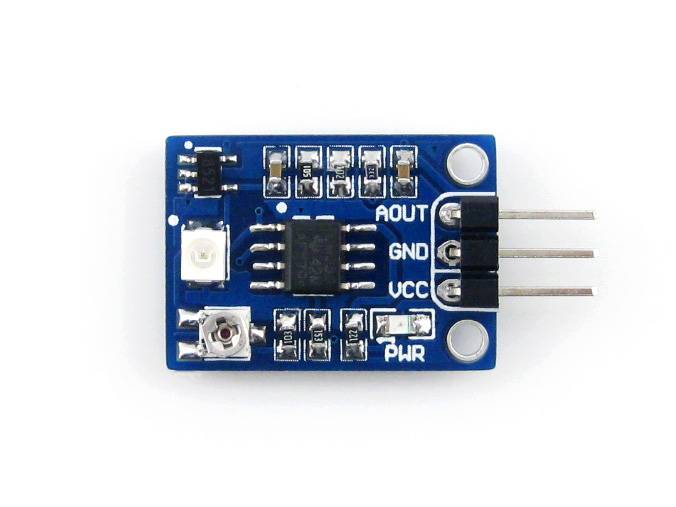

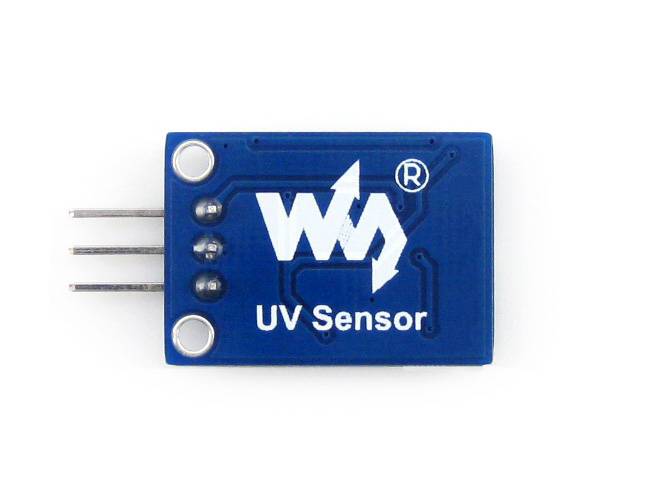

Waveshare UV Sensor Outdoor ultraviolet detector Onboard amplifier

Überblick

Waveshare UV Sensor Outdoor ultraviolet detector Onboard amplifier

Beschreibung

Overview

• Output voltage boosts along with the ambient ultraviolet intensity increases
• Onboard amplifier circuit with adjustable amplification factor

Specifications

• Response spectrum: 200nm-370nm
• Dimension: 22.0mm * 16.0mm
• Mounting holes size: 2.0mm

Applications

• Ultraviolet tester
• Outdoor ultraviolet detector
• Germicidal lamp

How to Use

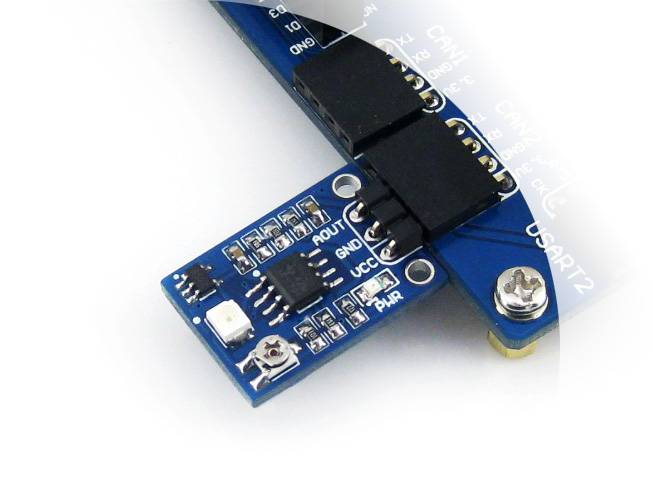

In the case of working with a MCU:

• VCC -3.3V ~ 5.0V
• GND - power supply ground
• AOUT - MCU.IO (analog output)

Package Contains

• UV Sensor × 1
• 3-pin custom connector jumper wire × 1
