Beschreibung
Lieferumfang:
• Kurzanleitung
• Staubschutzabdeckung

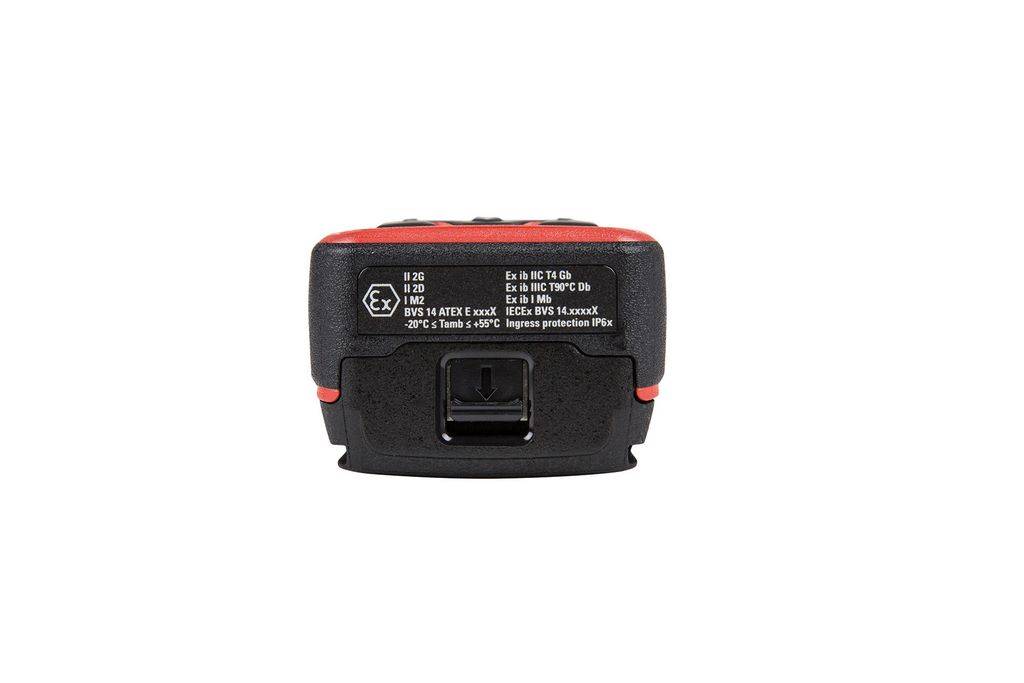

ATEX Spezifikationen
• Gas: II 2G Ex ib IIC T4 Gb
• Dust: Class II 2D Ex ib IIIC T90°C Db
• Triple Certification: ATEX, IEC Ex, FM
Technische Daten
• Frequency Band (MHz): 350-470
• Transmitter RF Power class 3L und class 4
• Receiver class A and B
• Receiver Static Sensitivity: -116dBm (min); -118dBm (typical)
• Receiver Dynamic Sensitivity : -107 dBm (min); -109 dBm (typical)
• Audio Power: >1.2W Integrated audio howling supression
• Operating Temperature (°C): -20 to +55 (Hazardous Locations)
• Operating Temperature (°C): -30 to +55 (Non Hazardous Locations
• Storage Temperature (°C): -40 to +85
• Humidity: ETS 300-019-1-7 Class 7.3E, MIL STD 810 D, E, F, G
• Dust and Water: IP64, IP65, IP66 und IP67 per IEC-60079-0:2011 und IEC-60529
• Shock, drop and vibration: ETS 300-019 1-7 class 5M3; MIL-STD 810 D/E/F/G
• Air Interface Encryption Algorithms: TEA1, TEA2, TEA3
