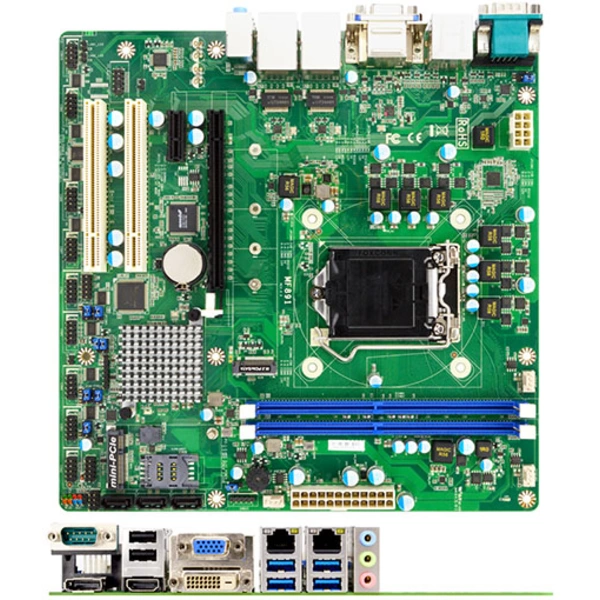

The JETWAY JNMF891 are Micro-ATX form factor board adopts the Intel® 8th generation Core i7/i5/i3, Pentium and Celeron Processor. The board supports DDR4 2666Mhz UDIMM memory, up to 32GB. Featuring the integrated Realtek Gigabit Ethernet controller, the JNMF891 offers 10/100/1000Base-TX Ethernet devices for network transmission. Three SATAIII (6Gb/s) interface and one M.2 (M-key, 2242/2260/2280/22110) offer storage devices. One Mini PCIe interface, four USB3.1(Gen1) ports, four USB2.0 ports and ten COM ports provide versatile expansion. The JNMF891 offers one VGA port, one DVI port, one HDMI port and one DP port which can support 2 independent displays. Because of the above features, JNMF891 is one of the best selections for digital signage, banking, KIOSK and POS applications.
- Intel® LGA1151 Socket Gen8 Coffee Lake Core i3, i5, i7 & Pentium Processors (Max. 65W TDP)
- Intel H310 Express Chipset
- Support Dual Channel DDR4 2666MHz, 2 * UDIMM slot, up to 32GB memory
- 2 * Realtek Gigabit LAN (RTL8111H)
- 3 * SATA III (6Gb/s), 1 * M.2 (M-key, 2242/2260/2280/22110, SATA Interface)
- 4 * USB 3.1(Gen 1), 4 * USB 2.0
- 10 * COM ports (COM1/2 supports RS232/422/485)
- Support TPM 1.2/2.0 onboard option
- Micro ATX form factor (244mm x 244mm)
