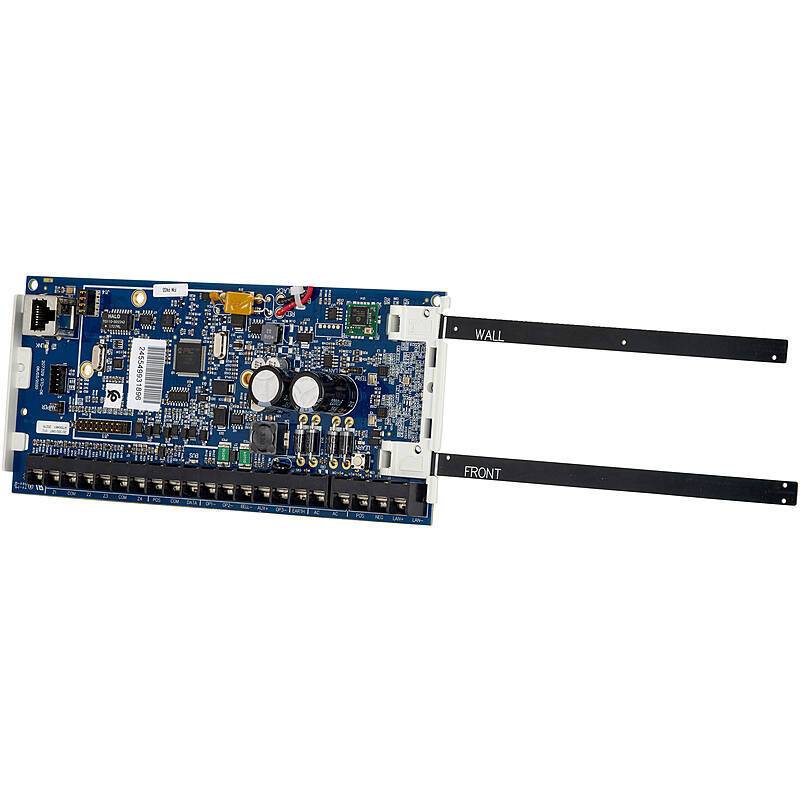

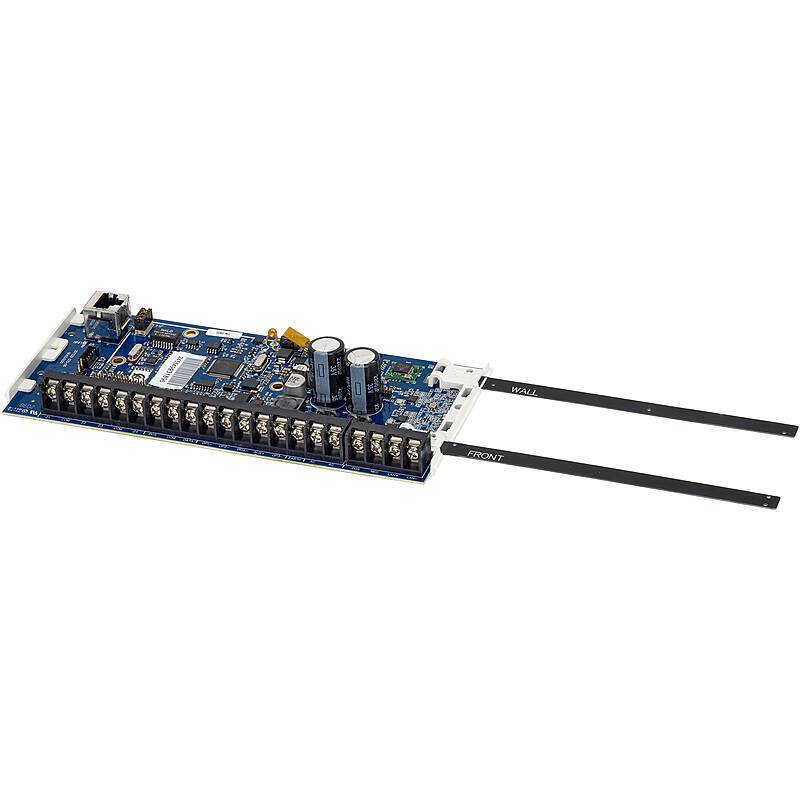

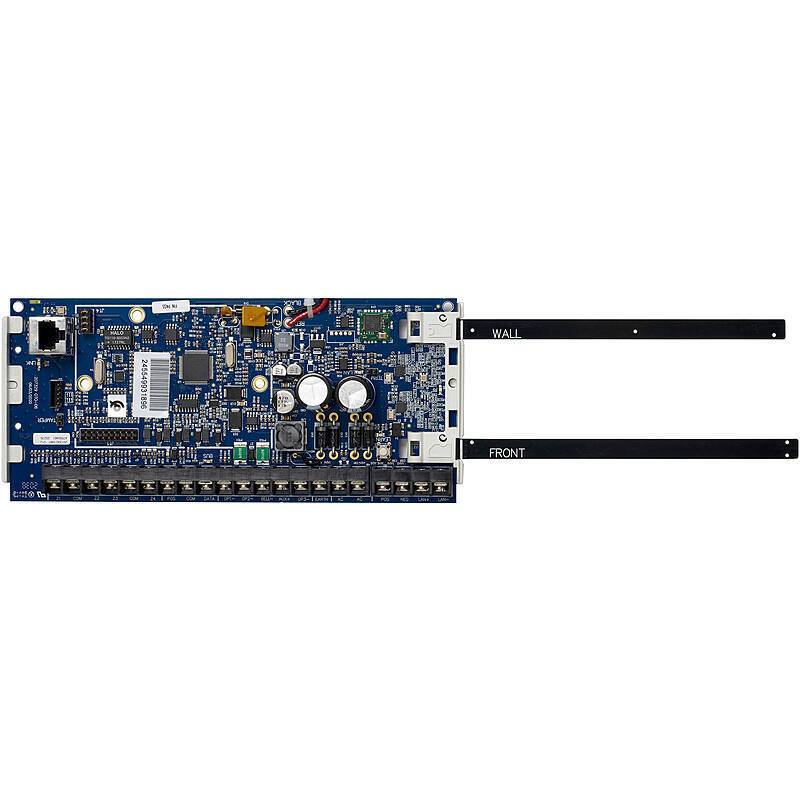

xGen NXG-4-RF-BO Hauptplatine, 4 Zonen (max. 16), Hauptplatine | nach Richtlinien:EN 50131 Grad 2 | Einsatzgebiet:Gewer

Überblick

xGen NXG-4-RF-BO Hauptplatine, 4 Zonen (max. 16), Hauptplatine | nach Richtlinien:EN 50131 Grad 2 | Einsatzgebiet:Gewerbeobjekte, Haus, Wohnung | Bedienung:per Bedienteil, per App | Max. Anzahl Sensoren:16 | Max. Anzahl Benutzer:40 | Benachrichtigungen:per Telefonanruf, per SMS-Text, per App Push-Nachricht | Leuchtmittel: LED

Beschreibung

Hauptplatine | nach Richtlinien:EN 50131 Grad 2 | Einsatzgebiet:Gewerbeobjekte, Haus, Wohnung | Bedienung:per Bedienteil, per App | Max. Anzahl Sensoren:16 | Max. Anzahl Benutzer:40 | Benachrichtigungen:per Telefonanruf, per SMS-Text, per App Push-Nachricht | Leuchtmittel: LED

BESCHREIBUNG

• 4 zones on-board
• Maximum 16 zones (including wireless)
• Maximum 8 wireless keyfobs
• Legacy &. LoNa 433 MHz RF receiver on-board
• Multi-purpose keyed external antennas
• Maximum 4 partitions
• Maximum 40 users, each user with up to 4 profile levels
• Maximum 24 devices (expanders and keypads)
• Maximum 16 keypads
• xGen and NetworX communication bus
• Zone Doubling and multiple end-of-line resistor support
• UltraSync Video integration
• 3 programmable outputs on-board
• Actions and Scenes programming logic
• 10/100Base-T IP/LAN connection
• Optional 4G/WiFi and 4G plug-on module
• Built-in web server
• DLX900 programming software
• Supporting Osborne Hoffman alarm reporting in SIA and CID
• Firmware upgrade via USBUP-EUR-V2 or DLX900 over the network
• Auto-enroll feature
• Several diagnostic LEDs on-board
• EN50131-1/EN50131-3/EN50131-6 Grade 2 Class II, EN50136-2/EN50131-10 SP4 DP3, INCERT T031+A1

EIGENSCHAFTEN

TECHNISCHE DATEN

• Product line: xGenConnect
• Panel type: Hybrid
• Kit: No
• Max no. of modules: 24 (of which max 16 keypads)
• Max no. of inputs: 16
• Onboard inputs: 4
• 2EOL resistor values: 3.3 kO - 6.6 kO . 4.7 kO -
• 9.4 kO . 4.1 kO
• - 8.2 kO
• Max no. of wireless transmitters: 16 sensors + 8
• keyfobs
• No. of onboard outputs: 4
• No. of areas: 4
• Max. no. of users: 40
• Onboard transmission type: IP
• Databus type: NetworX &. xGen RS-485
• Alarm event log: 1024
• Operating voltage: 230 VAC +10%,? -15%,? 50 Hz
• ±10%
• Power supply value: 16.3 VAC 40 VA
• Mainboard current consumption: 130 mA at 13.8
• VDC +/- 0.4 V
• Max system current: 2000 mA at 13.8 VDC +/- 0.4 V
• Max aux power current: 13.8 VDC +/- 0.2 V,? 1 A
• max.
• Auto-reset fuses: Yes
• Supported battery: BS127N: 7.2 Ah 12 V nominal
• Wireless receiver: 433 MHz Legacy + LoNa
• Physical dimensions: 198 x 89 x 25 mm
• Shipping weight: 155 g
• Material: ---
• Housing: No housing
• Operating temperature: 0 to +55°C
• Relative humidity: 95% noncondensing
• Environment: Indoor
• Environmental Class: Class II
• EN50131 Grade: Grade 2
• Compliancy: CE
• Certification: EN50131 Grade 2,? INCERT
