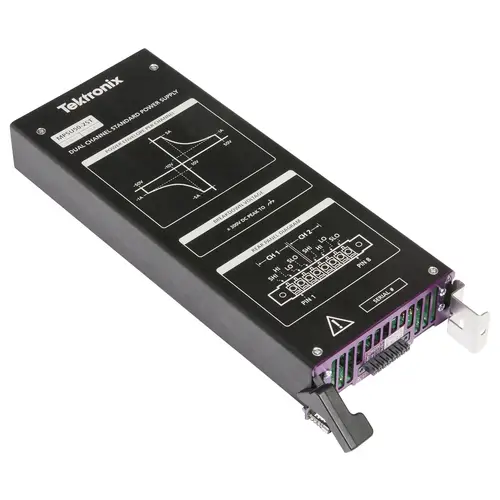

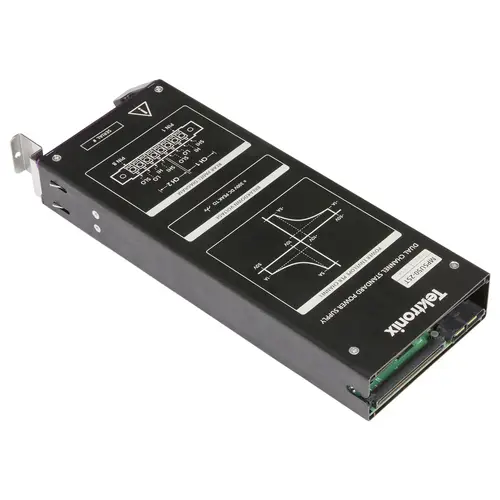

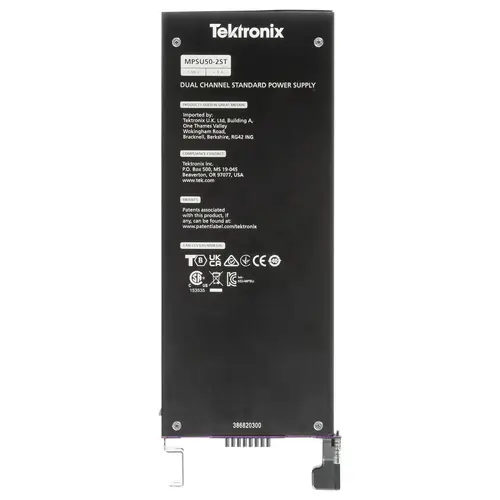

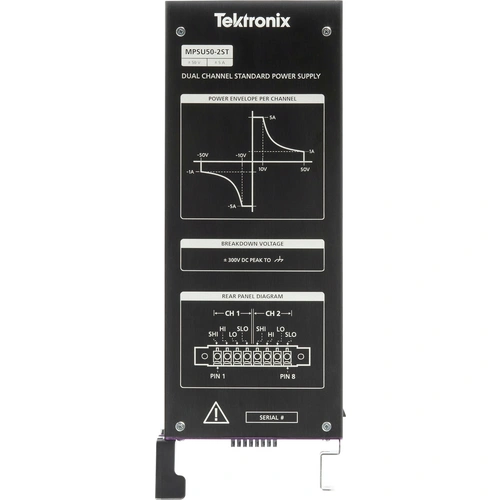

Keithley MPSU50-2ST MPSU50-2ST 1St.

Produktbeschreibung

Überblick

Modular Architecture
-1U rack-mountable chassis with 3 rear-access module slots
-Supports up to 6 channels per chassis
-Mix-and-match SMU and PSU modules for flexible configurations
-Swappable modules without removing/powering down the mainframe
-High-Performance PSU Modules
-PSU Modules:
-2 Ch, 50W, 50V/5A (bipolar)

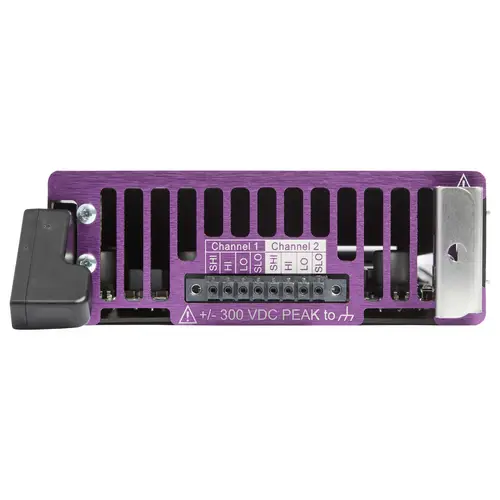

-Remote sensing, output disconnect relay, OVP/OCP
-Isolated channels for series/parallel stacking
Advanced Automation & Software
-TSP Toolkit:
-Visual Studio Code-based IDE
-On-instrument script debugging
-Automated TSP script generation with channel sync
-Driver Support: Python, LabVIEW, IVI, SCPI-compatible
-Web Interface: Browser-based control and monitoring
-Connectivity & Integration:
-TSP-Link: Synchronize up to 32 mainframes
-18 Digital I/O pins for hardware handshaking
-USB 3.0 and 1 Gigabit Ethernet for fast data streaming

Beschreibung

The MP5000 Serie is Tektronix’s next-generation modular precision test platform engineered to meet the evolving demands of automated test equipment (ATE) in validation and production workflows. Designed with a compact 1U form factor, it supports up to six configurable SMU or PSU channels per chassis and scales to 192 channels in parallel—maximizing rack space, throughput, and test flexibility.

Hinweise

Programmable Power Supply (PSU) Modules:
Configurations:
-2 Ch, 50W, 50V / 5A (bipolar)
-Future: 2 Ch, 100W, 60V / 10A; 300W precision; battery simulator
Features:
-Bipolar output
-Output disconnect relay
-Remote sensing
-Current readback
-OVP (Over Voltage Protection) & OCP (Over Current Protection)
Isolated channels (stackable in series/parallel)
TSP Toolkit:
-Visual Studio Code-based IDE
-On-instrument script debugging
-Automated TSP script generation with channel sync
-Instrument simulation and waveform preview
-Python API integration
-Data export (.csv, .xlsx)
