Beschreibung

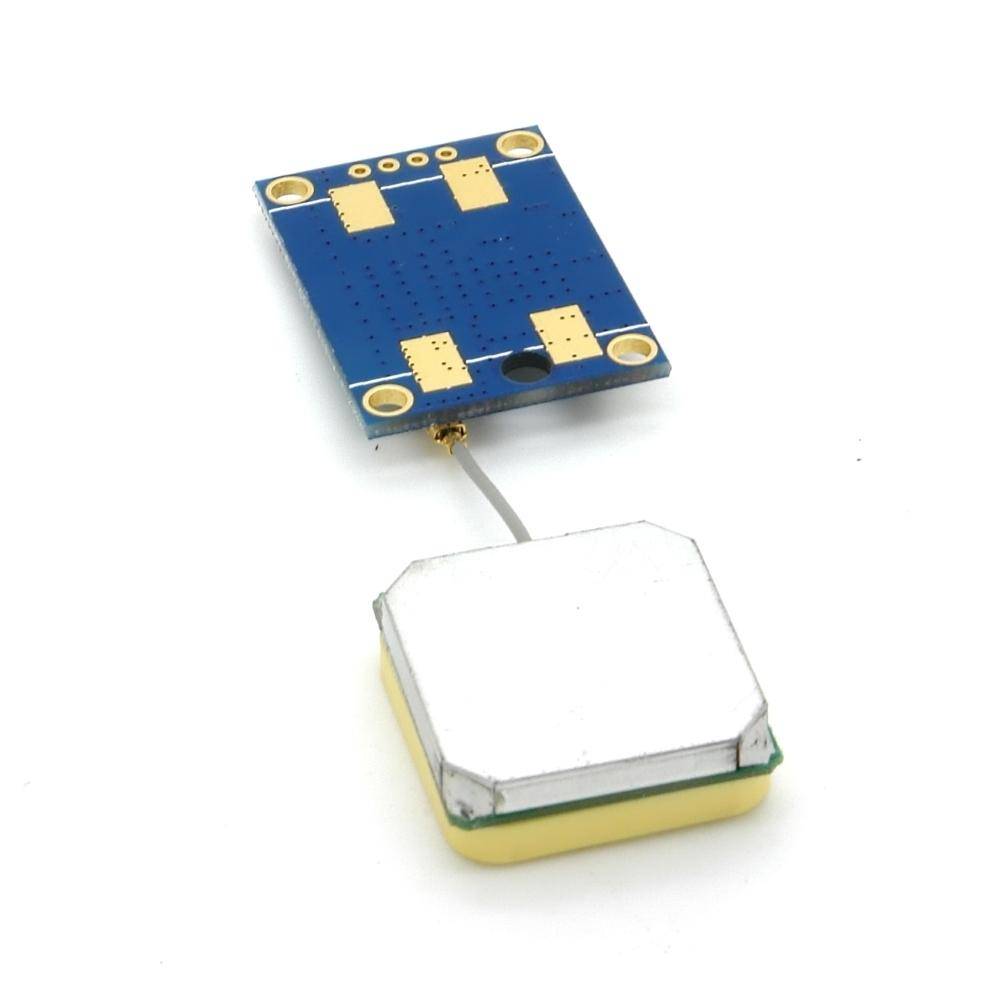

TTL GPS Modul mit u-blox NEO-6M Chipsatz.
Technische Daten
- Keramik-Antenne
- Betriebsspannung: 3 - 5V
- A-GPS Dienste: GPS, GALILEO, SBAS (WAAS, EGNOS, MSAS, GAGAN)
- PCB Immersion Gold process. The signal is more stable.
- Main chip: U-BLOX NEO-6M
- C / A code, 1.023MHz stream
- Receive bands: L1 [1575.42MHz]
- Positioning performance
- 2D plane: 3m [average]
- The flat 2D: 2m [average], WAAS auxiliary.
- Drift: <0.02m / s
- Timing accuracy: 1us
- Reference coordinate system: WGS-84
- Maximum altitude: 18,000 m
- Maximum Speed: 515m / s
- Acceleration: <4g
- Electrical properties:
- Tracking sensitivity:-161dBm
- Acquisition sensitivity:-148dBm
- Cold start time: 38s [average]
- Warm start: 35s [average]
- Hot start time: 1s [average]
- Recapture time: 0.1s [average]
- Operating temperature: -40 °C to +80 °C
- 4 Montagelöcher mit Ø 3 mm
- Abmessungen:
- Modul: 36 X 26 X 5 mm
- Antenne: 25 X 25 X 9 mm
Lieferumfang:
- Modul
- Antenne
