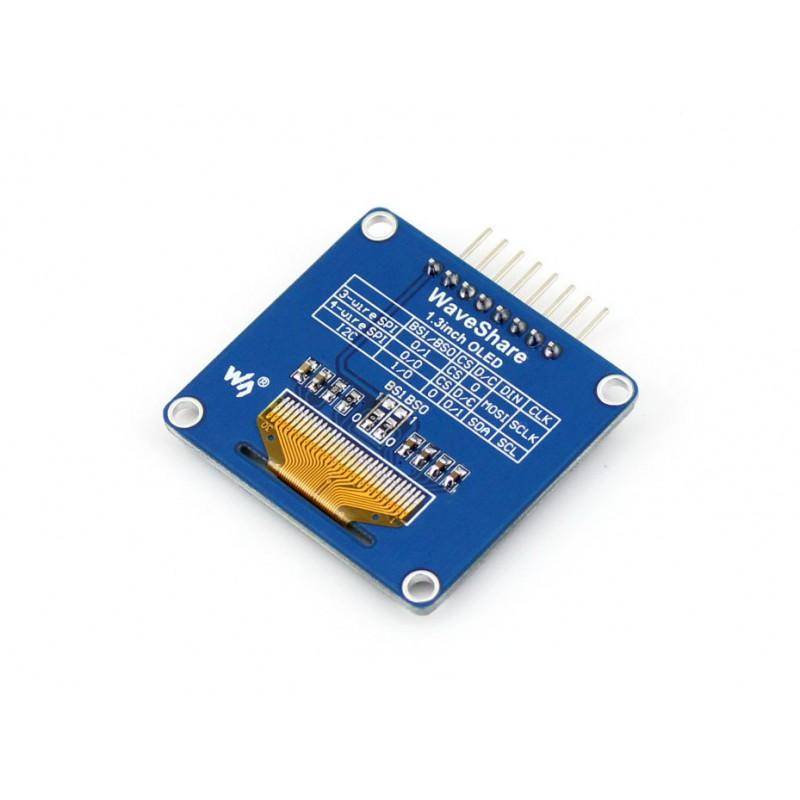

Beschreibung
1.3" OLED Display mit SPI / I2C Interface.
Bitte beachten Sie, dass dieses Modul in 2 verschiedenen Konfigurationen erhältlich ist, welche sich in der Anordnung der Stiftleiste unterscheiden. Dieses Modell hat eine horizontale Stiftleiste.
Spezifikationen
| Driver Chip | SH1106 |
|---|---|
| Interface | 3-wire SPI 4-wire SPI, I2C |
| Resolution | 128×64 |
| Display Size | 0.96inch |
| Colors | Blue |
| Visible Angle | >160° |
| Dimension | 40.50mm*37.50mm |
| Operating Temp. (℃) | -30~70 |
| Storage Temp. (℃) | -30~80 |
| Operating Voltage | 3.3V / 5V |
Interface

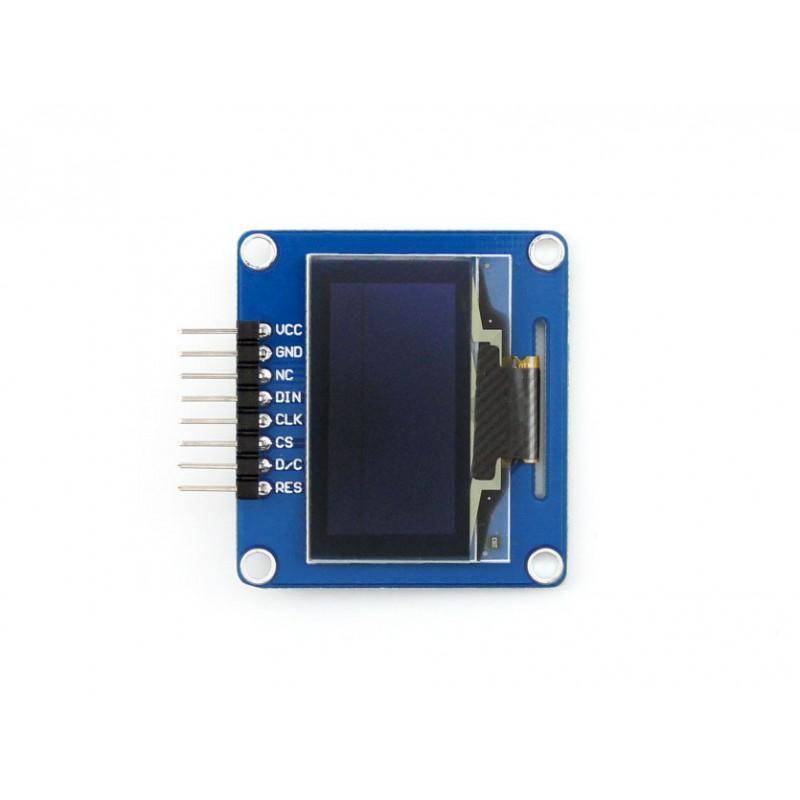

| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | VCC | Power positive (3.3~5V power input) |
| 2 | GND | Ground |
| 3 | NC | NC |
| 4 | DIN | Data input |
| 5 | CLK | Clock signal input |
| 6 | CS | Chip selection, low active |
| 7 | D/C | Command signal, low level for command, high level for data |
| 8 | RES | Reset signal, low active |

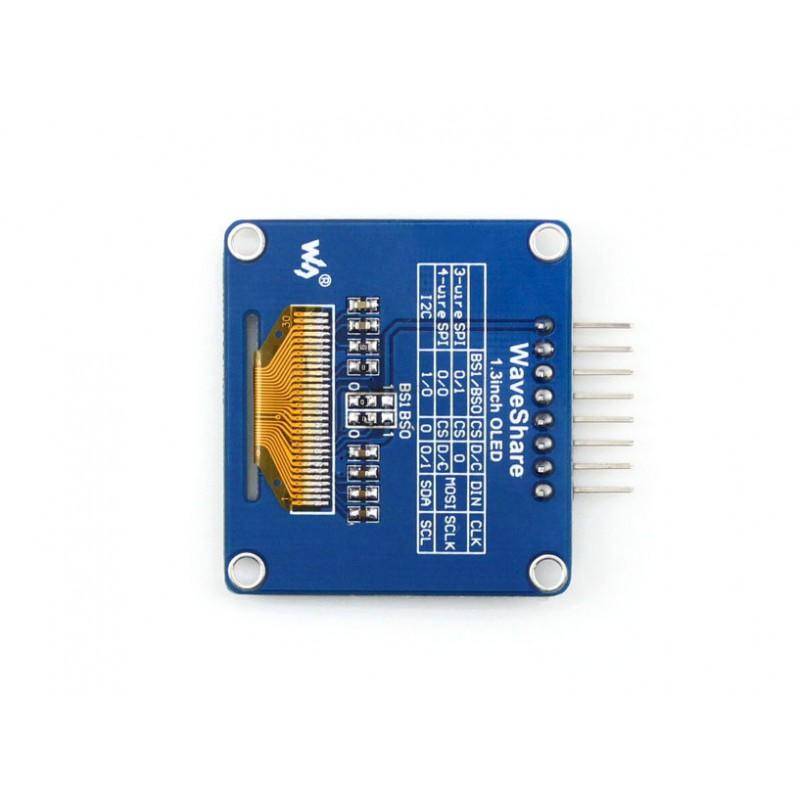

Hardware Config
| Mode/Interface | BS0 / BS1 | DIN |
|---|---|---|
| 3-wire SPI | 1/0 | MOSI |
| 4-wire SPI | 0/0 | |
| I2C | 0/1 | SDA |
Dokumentation / Downloads
- https://www.waveshare.com/wiki/1.3inch_OLED_(A)
