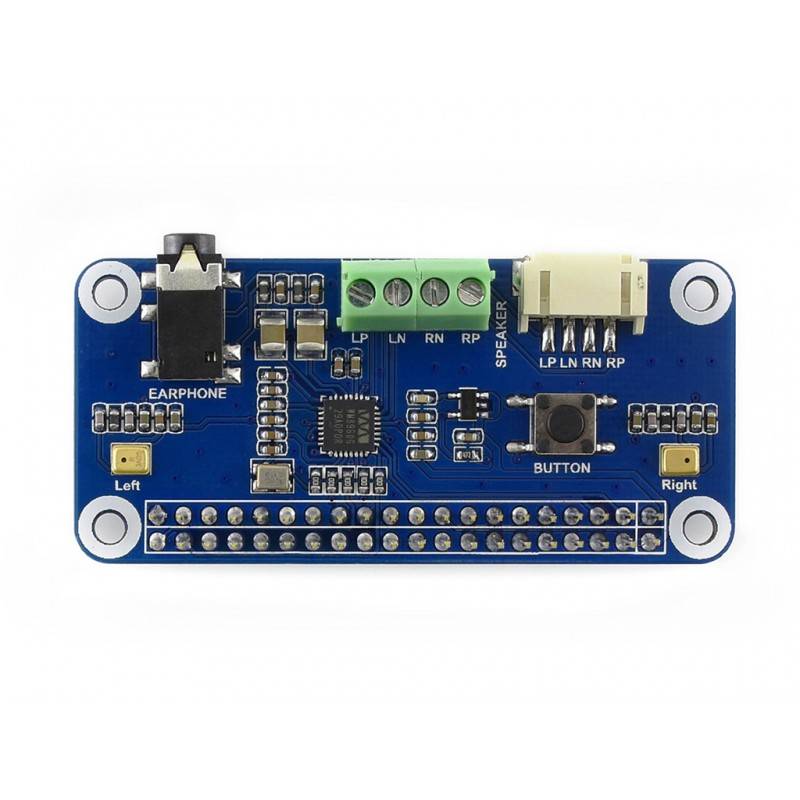

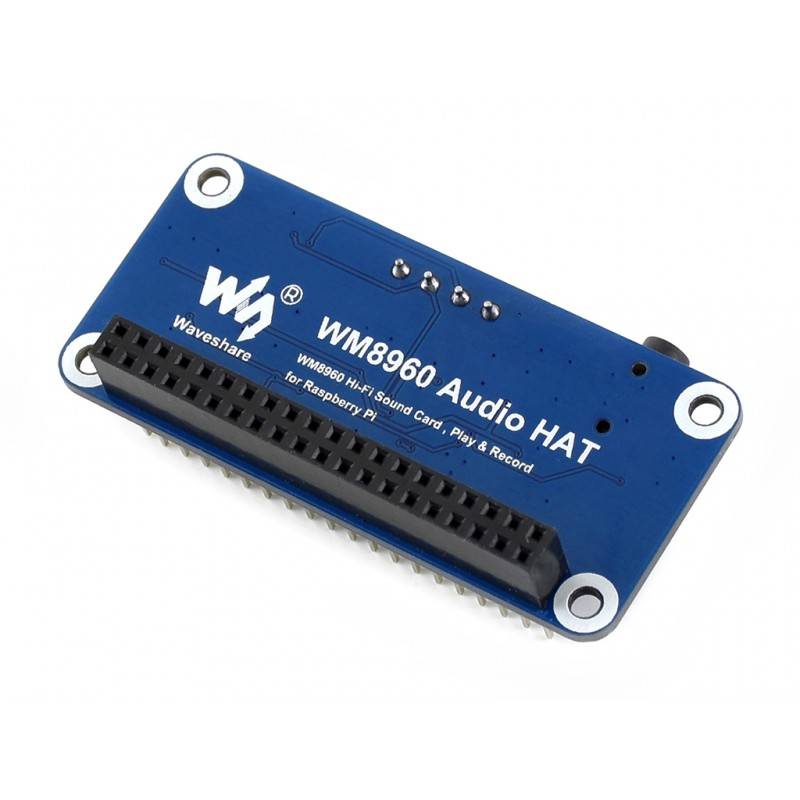

WaveShare WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Stereo CODEC, Play/Record

Überblick

Waveshare WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Stereo CODEC, Play/Record Audio

Beschreibung

Overview

This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music.

Specification

• Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
• Integrates WM8960 low power stereo CODEC, communicates via I2S interface
• Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
• Onboard standard 3.5mm earphone jack, play music via external earphone

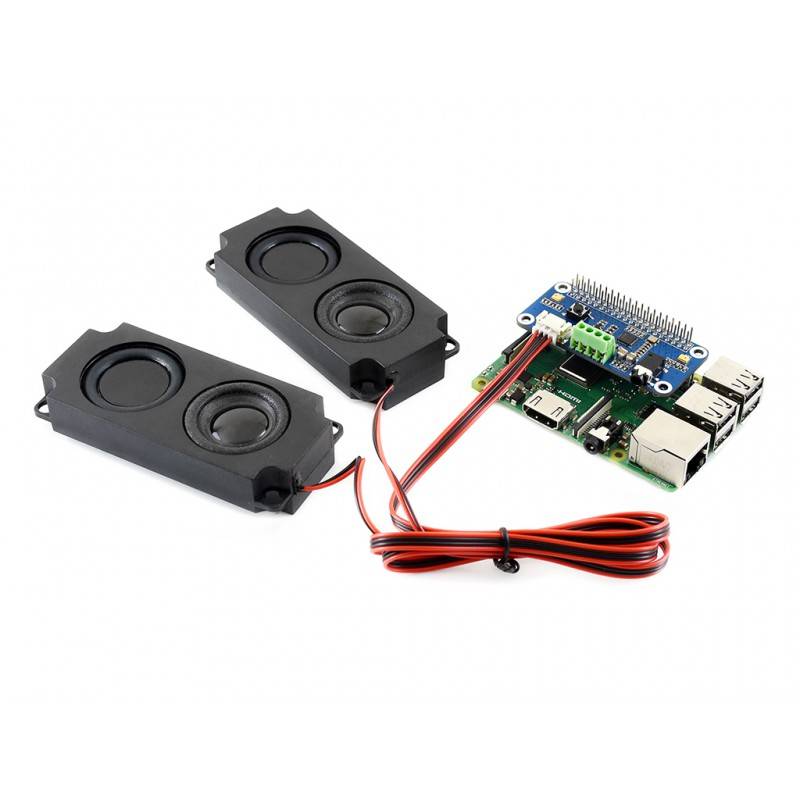

• Onboard dual-channel speaker interface, directly drives speakers
• Supports sound effects such as stereo, 3D surrounding, etc.
• Comes with development resources and manual (python demo code for playing / recording)

Technical Details

• CODEC: WM8960
• Power supply: 5V
• Logic voltage: 3.3V
• Control interface: I2C
• Audio interface: I2S
• DAC signal-noise ratio: 98dB
• ADC signal-noise ratio: 94dB
• Earphone driver: 40mW (16O@3.3V)
• Speaker driver: 1W per channel (8O BTL)

Schauen Sie sich bitte den Reiter 'Dokumente' für weitere Informationen an.

Package List

1x SparkFun WM8960 Audio HAT

1x 8O 5W Speaker

1x RPi screws pack (2pcs)

Note: Raspberry Pi is NOT included.
