BMS - 52 x 62 x 10mm - 36 Volt 10S / 40A |

45,41 €

inkl. MwSt.

zzgl.

Stück

Lieferzeit: 2-3 Tage

auf Lager

Verkauf & Versand:

45,41 €

inkl. MwSt.

zzgl.

Produktbeschreibung

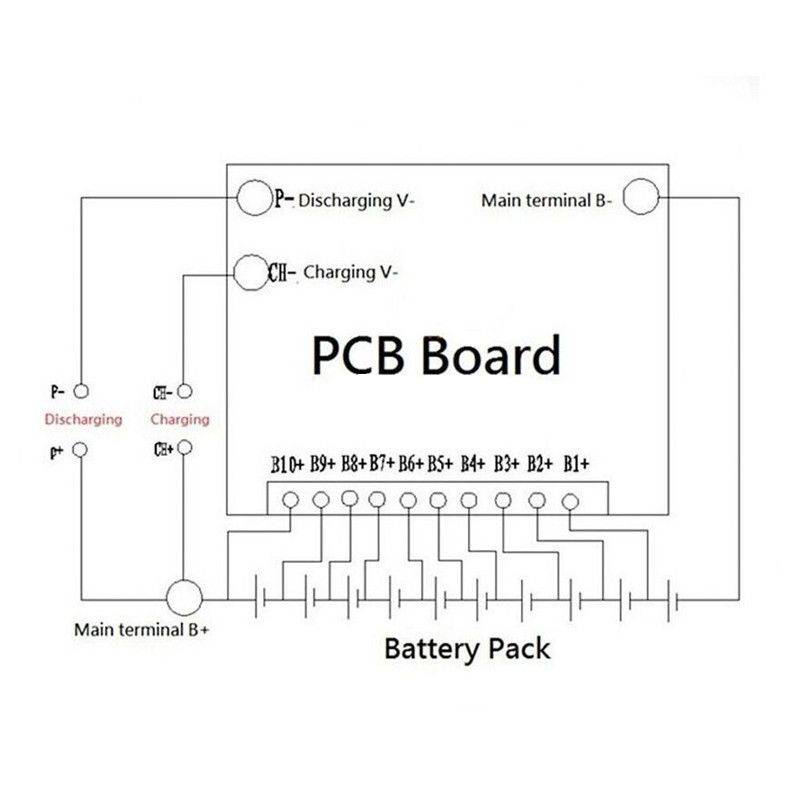

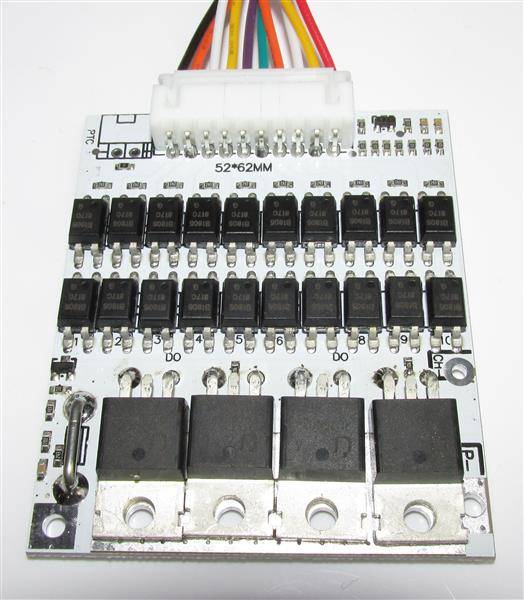

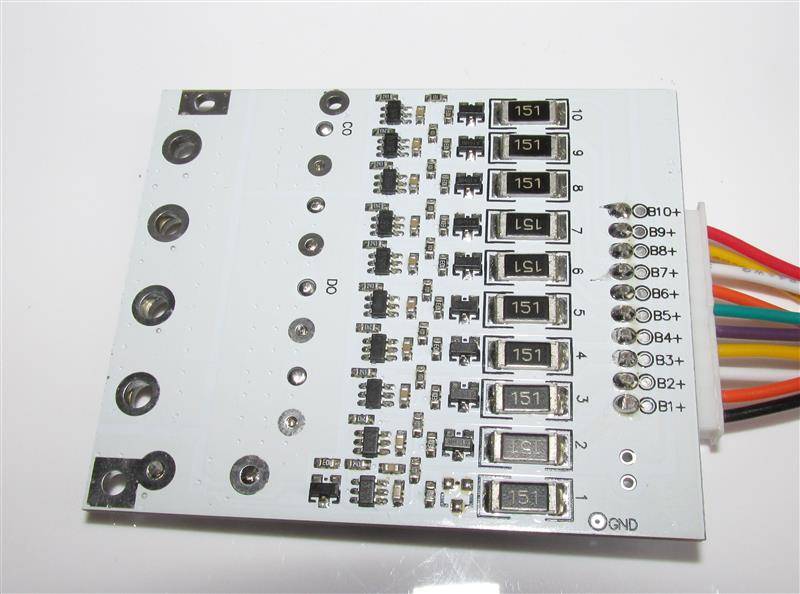

Battery-Management-System [BMS]
für 10 zellige Akkupacks [10S] - Lithium

Dimensions : 52 * 62MM

Applicable : 36 V10 series lithium battery protection board

Type of batteries : lithium cobalt / manganese lithium / ternary materials

Single overcharge protection voltage 4.25V ± 0.05V (4.20-4.35V / / 0.05V per upgrade )

Single overcharge recovery voltage :4.10-4 .00 V

Single Over-discharge protection voltage : 2.50V ± 0.1V (2.50-3.0V / / every .05 V into the class )

Single Over-discharge recovery voltage : 2.80V ± 0.1V

Protection Current consumption : = 300UA

Short circuit protection current : 40A ± 3A
