Beschreibung
Moxa's dedication to being a trusted provider of serial connectivity is demonstrated by our long-term commitment to serial products and service availability. Our PCI Express, Universal PCI, and PCI serial boards are built for industrial applications, and include models that can operate reliably in a wide temperature range.

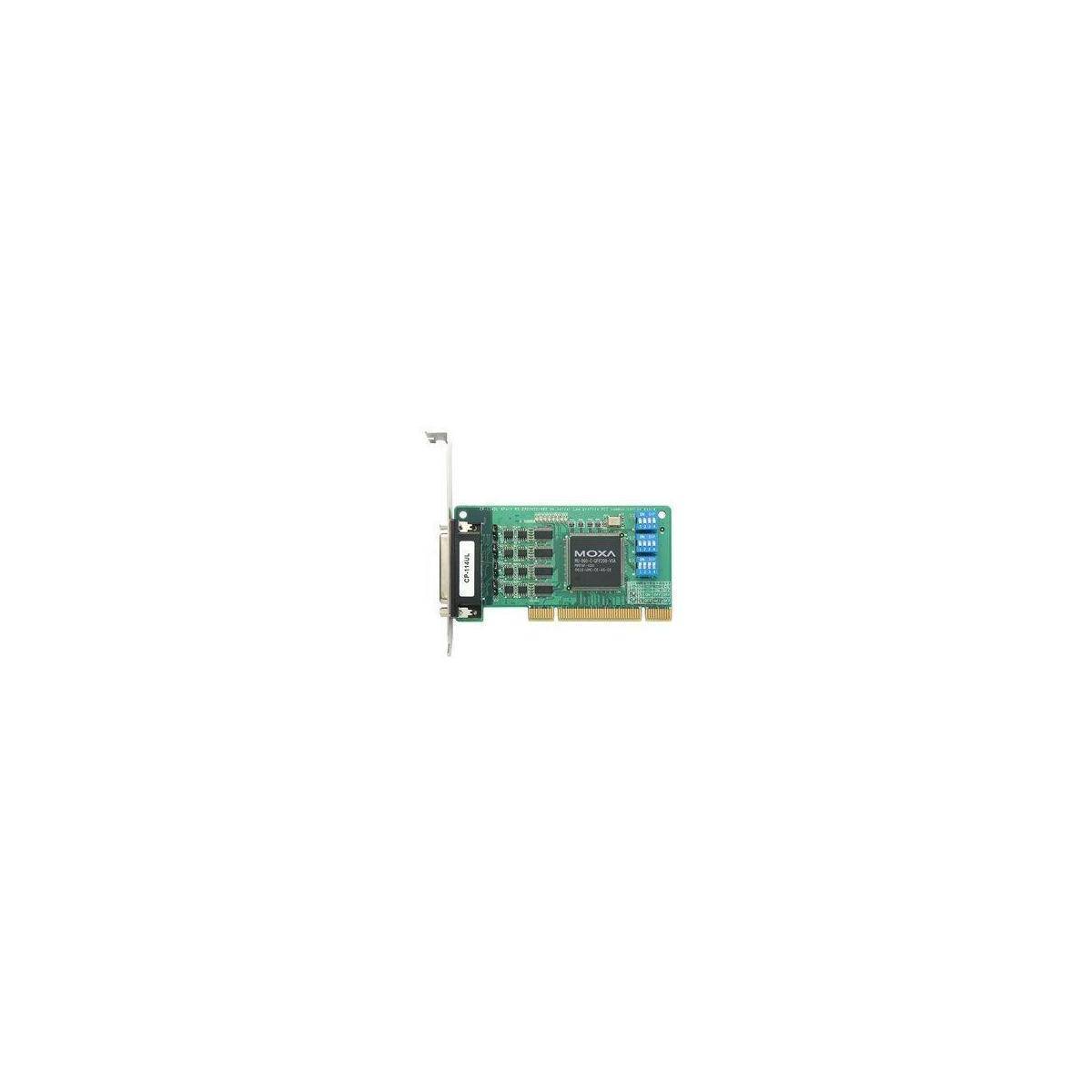

4-port RS-232/422/485 low-profile Universal PCI serial board, -40 to 85°C operating temperature
Serial Interface
- Comm. Controller MU860 (16C550C compatible)
- Bus 32-bit Universal PCI
- Connector DB44 female
- FIFO 128 bytes
- Max. No. of Boards per PC 8
- No. of Ports 4
- Serial Standards RS-232, RS-422, RS-485
- Baudrate 50 bps to 921.6 kbps
- Data Bits 5, 6, 7, 8
- Stop Bits 1, 1.5, 2
- Flow Control None, RTS/CTS, XON/XOFF
- Parity None, Even, Odd, Space, Mark
Serial Signals
- RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422 Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w Data+, Data-, GND
Serial Software Features
- Windows Drivers
DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
- UNIX Drivers QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Power Parameters
- Input Current 320 mA @ 5 VDC
Physical Characteristics
- Dimensions 64.4 x 120 mm (2.53 x 4.72 in)
LED Interface
- LED Indicators Built-in Tx, Rx LEDs for each port
Environmental Limits
- Operating Temperature -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
- EMC EN 55032/35
- EMI CISPR 32, FCC Part 15B Class B
- EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
Declaration
- Green Product...
